Material Handling Valves

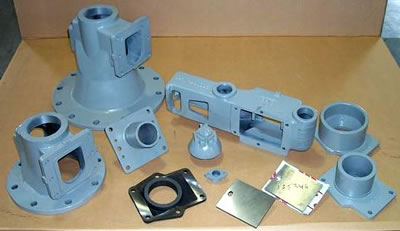

Click on picture to display larger image
** Valve Series A15633, A15880, A14239, A12816 available
Please call EPIC for information on other parts not listed.
|
Material Handling Valves
| EPIC Part # |
OEM Part # |
Description |
| 132091 |
15587 |
Cylinder Gate Housing |
| 132074 |
15587-1 |
Cylinder Gate Housing |
| 133523 |
15587-8 |
Cylinder Gate Housing |
| 134288 |
15587-9 |
Cylinder Gate Housing |
| |
|
|
| 132198 |
15586 |
8" Flanged Body |
| 133288 |
15588 |
12" Valve Body |
| 133522 |
1588-1 |
Valve Body |
| |
|
|
| 132184 |
16575 |
Deflector Tube |
| 132184C |
16575 |
Ceramic-Coated Deflector Tube |
| |
|
|
| 130624 |
14621 |
Gland Packing Housing |
| 131485 |
14620 |
Gland Packing Follower |
| |
|
|
| 131362 |
12815-4G |
Stainless Steel Slide Gate |
| 135346 |
12815-4H |
Tungsten Carbide Gate |
| |
|
|
| 131351 |
14137-6 |
Valve Seat |
| 131351TC |
14137-6 |
Tungsten Coated Valve Seat |
| |
|
|
| 131943 |
14136-1 |
Outlet Valve |
| 132183 |
12805-1 |
Outlet |
| |
|
|
| 131398 |
14595-4 |
Air Cylinder |
| 135421 |
212451-A |
Air Cylinder |
| |
|
|
| 130177 |
A10690 |
2" Air Inlet Valve Assy |
|
|
